Dam Construction and Monitoring Photos

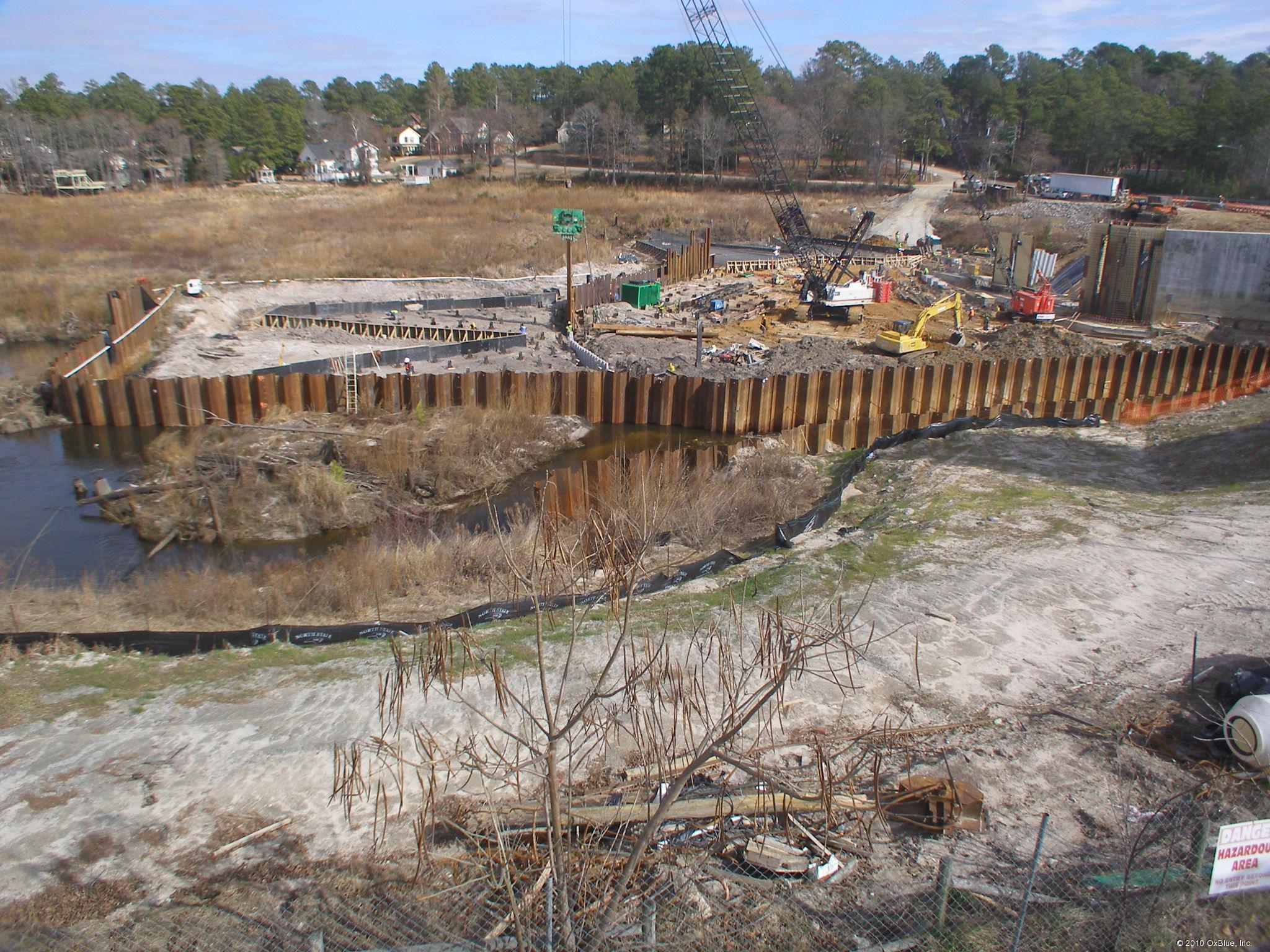

Full-sized photo of dam during construction

Click Photo for Larger View

Here are pictures of the water stop used at the dam. It appears that vinyl sheet piling was used from the center of the dam through the West wall while metal sheet piling was used from the center of the dam through the East wall.

Pictures were provided from the website :
http://crowder.oxblue.com/hmdr/

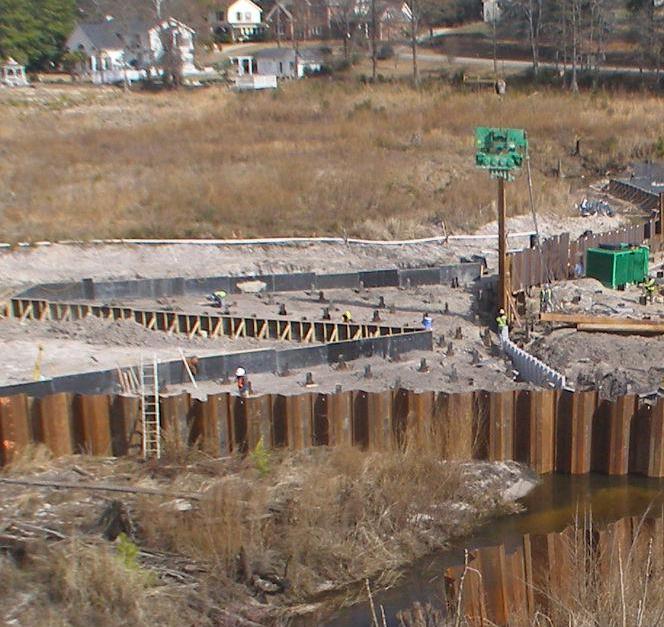

Cropped Photo showing detail of dam construction foundation

Click Photo for Larger View

 Closer crop of the first photo.

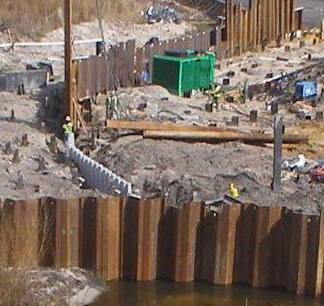

Closer view of above photo of dam foundation

Click Photo for Larger View

 ...Still closer.

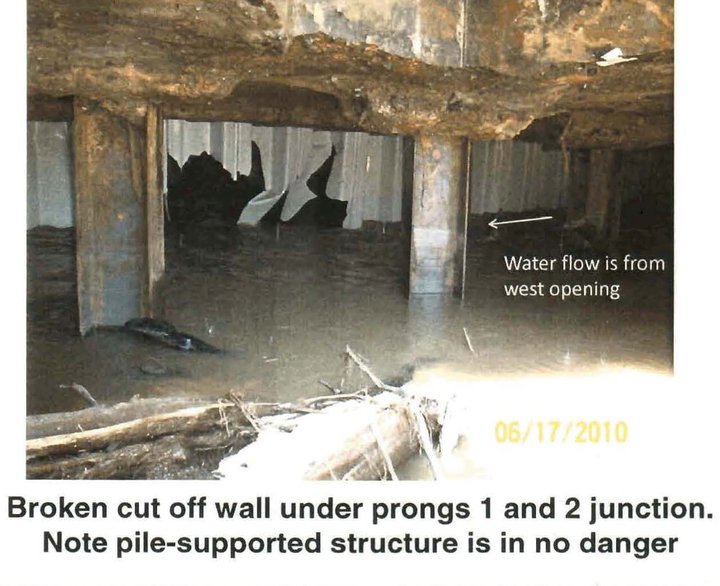

Failed vinyl on the west wall of the dam

Click Photo for Larger View

Broken cut-off wall onder prongs 1 and 2 junction on the west wall of the dam.

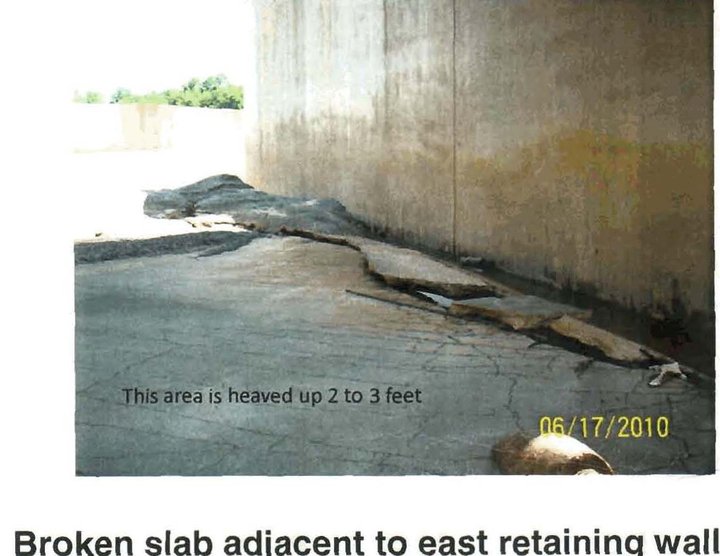

Concrete heaved from the floor of the spillway

Click Photo for Larger View
Broken slab adjiacent to east retaining wall in the dam stillway.

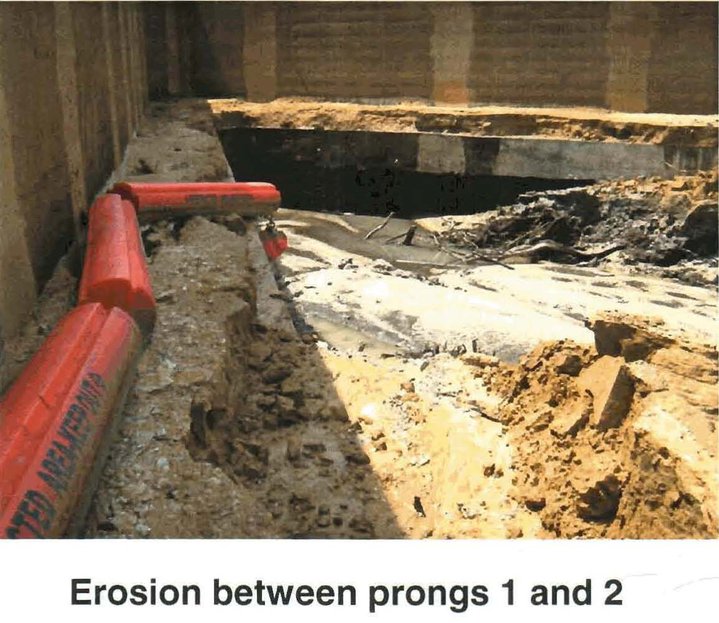

Dam erosion around the base of the dam fingers

Click Photo for Larger View

Erosin around the base of the dam fingers.
